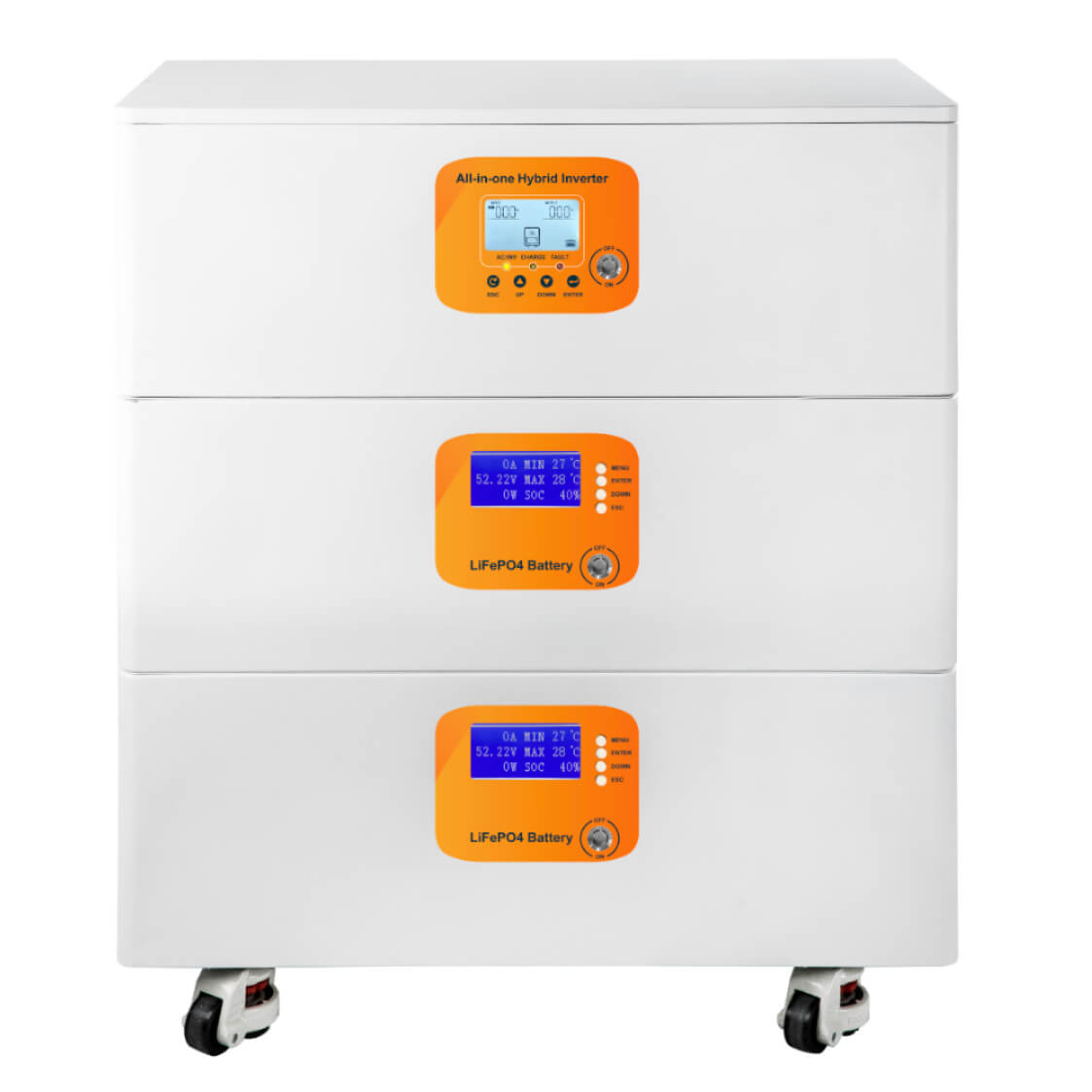

30kWh All-in-One Stacked Energy Storage System | 48V 11kW Hybrid Inverter + Dual LiFePO4 Battery Packs with Smart BMS & LCD

Description

Upgrade to serious energy storage with our 30kWh All-in-One Stacked Energy Storage System, a fully integrated solution combining a powerful 48V 11kW hybrid inverter with two 15kWh LiFePO4 battery modules. Built for high-demand residential and light commercial use, this modular system is designed for performance, safety, and ease of installation.

The system supports hybrid input (PV + AC) and provides 210V–230V output at 50Hz/60Hz, making it perfect for both off-grid and grid-tied applications. With a smart BMS, LCD display, and metal casing, this unit ensures reliability, long cycle life, and comprehensive system protection.

Key Features:

• ⚡ 30kWh High-Capacity Storage – Dual 15kWh LiFePO4 battery modules
• 🧠 Smart BMS Protection – Intelligent control and multiple protection features
• ☀️ Hybrid Input – Compatible with both solar PV and grid AC input
• 📺 LCD Display – Real-time monitoring of voltage, SOC, system status, and errors
• 🔌 Plug-and-Play Design – Pre-wired and easy to install
• 🧱 Modular, Stacked Structure – 1 inverter + 2 battery packs + movable base
• 🔁 Long Life Battery – Grade A LiFePO4 with >6000 cycles at 80% DOD
• 🛞 Moveable Base Included – Easily relocatable for flexible installation
• ✅ 5-Year Battery Warranty & 2-Year Inverter Warranty

System Configuration:

• Inverter: 48V 11kW hybrid
  • AC Output: 210V–230V, 50/60Hz
• Battery: 51.2V 300Ah × 2 = 30kWh total
• Material: Metal housing
• Display: Integrated LCD
• Structure: 1 inverter + 2 batteries + 1 mobile base

Packaging Information:

• Inverter Box: 760 × 460 × 205 mm
• Battery Box 1 (UN Wooden): 820 × 520 × 330 mm
• Battery Box 2 (UN Wooden): 820 × 520 × 400 mm
• Total Gross Weight: 302.65 kg

Included Accessories:

• 1× Positive Red Cable (1200mm)
• 1× Negative Black Cable (1200mm)
• 1× RJ45 Communication Cable
• 1× Spanner
• 1× Screwdriver
• 1× Instruction Manual

Whether you’re looking to back up an entire home or power a small business, this 30kWh hybrid stacked energy storage system delivers the flexibility, performance, and reliability you need for the future of energy.
