39.68kW Off-Grid Solar Energy System | 4×11kW Hybrid Inverters + 4×10.24kWh LiFePO4 Batteries + 64×620W Mono PERC Panels

Description

Deliver maximum off-grid power with our 39.68kW All-in-One Off-Grid Solar Energy System, engineered for high-capacity and uninterrupted power supply. This system is ideal for remote industrial zones, large estates, agricultural stations, or disaster recovery power centers.

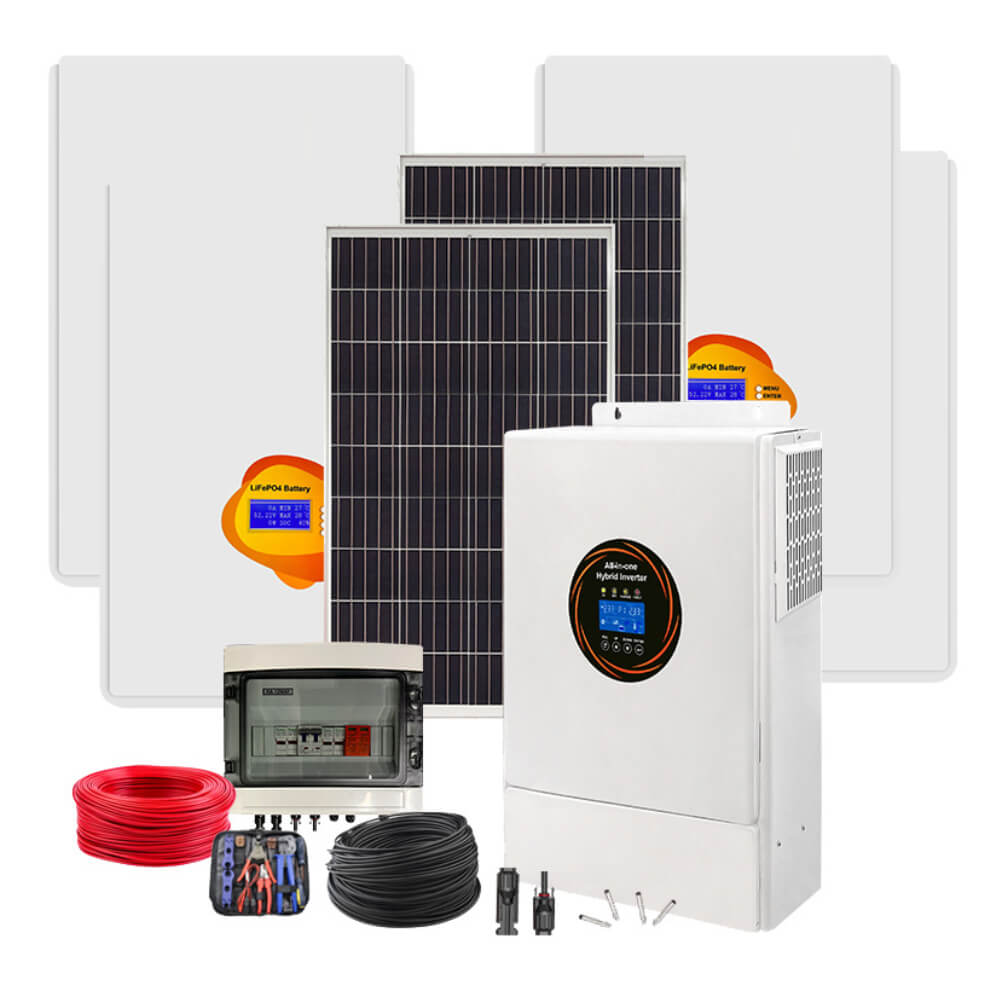

The system includes:

• 64× 620W Class A+ Mono PERC solar panels (Total: 39.68kW)
• 4× 11kW MPPT hybrid inverters (Total inverter capacity: 44kW)
• 4× 10.24kWh wall-mounted LiFePO4 batteries (Total: 40.96kWh storage)
• 4× IP65 combiner boxes, 400m PV cabling, 60 MC4 connectors, and aluminum mounting structure

With integrated smart BMS, LCD monitoring, and support for PV + AC hybrid input, this solution is powerful, scalable, and built for long-term energy autonomy.

⚙️System Components & Specifications

☀️ Solar Panels (×64)

• Type: Mono PERC, Class A+
• Rated Output: 620W per panel
• Total Solar Power: 39.68kW
• Voltage: 40.8V
• Size: 2382 × 1134 × 30 mm
• Weight: 33 kg each

⚡ Hybrid Inverters (×4)

• Output Power: 11kW each (Total: 44kW)
• Input Voltage Range (PV): 60–500V
• Max MPPT Current: 160A
• AC Output: 220V–240V
• Max AC Current: 120A
• Integrated Design: MPPT + Inverter
• Application: Off-grid or backup with optional grid/AC input

🔋 LiFePO4 Batteries (×4)

• Capacity per Unit: 51.2V 200Ah = 10.24kWh
• Total Capacity: 40.96kWh
• Installation: Wall-mounted
• Features:
  • Smart BMS with protections (over/under voltage, current, temp)
  • LCD screen with real-time monitoring
  • Communication interface available
• Included Accessories per Battery:
  • 1× Positive red cable
  • 1× Negative black cable
  • 1× RJ45 communication line
  • 1× Instruction manual

🧰 PV Combiner Boxes (×4)

• IP Rating: IP65 waterproof
• Equipped With:
  • 2P 63A DC Circuit Breakers
  • 2P DC Surge Protection Device (20–40kA, 500V)
  • DC Fuse 32A

🧵 Wiring & Connectors

• PV Cable: 4mm² – 400m red + 400m black
• MC4 Connectors: 60 pcs

🏗️ Mounting Structure

• Material: Corrosion-resistant aluminum alloy
• Design: Adjustable for rooftop or ground installation (reference layout only)

✅System Highlights

• 🌞 39.68kW solar generation capacity
• ⚡ 44kW hybrid inverter output with modular parallel support
• 🔋 40.96kWh LiFePO4 battery storage with smart BMS & LCD
• 🧩 Full system integration for easy installation & management
• 🛡️ Complete electrical protection via 4 combiner boxes
• 📊 Real-time monitoring & remote communication interface
• 🏠 Perfect for: Large off-grid homes, commercial sites, farms, emergency shelters

🛡️Warranty

• Battery: 5 Years
• Inverter: 2 Years
• Solar Panels: 10–12 Years Performance Warranty
