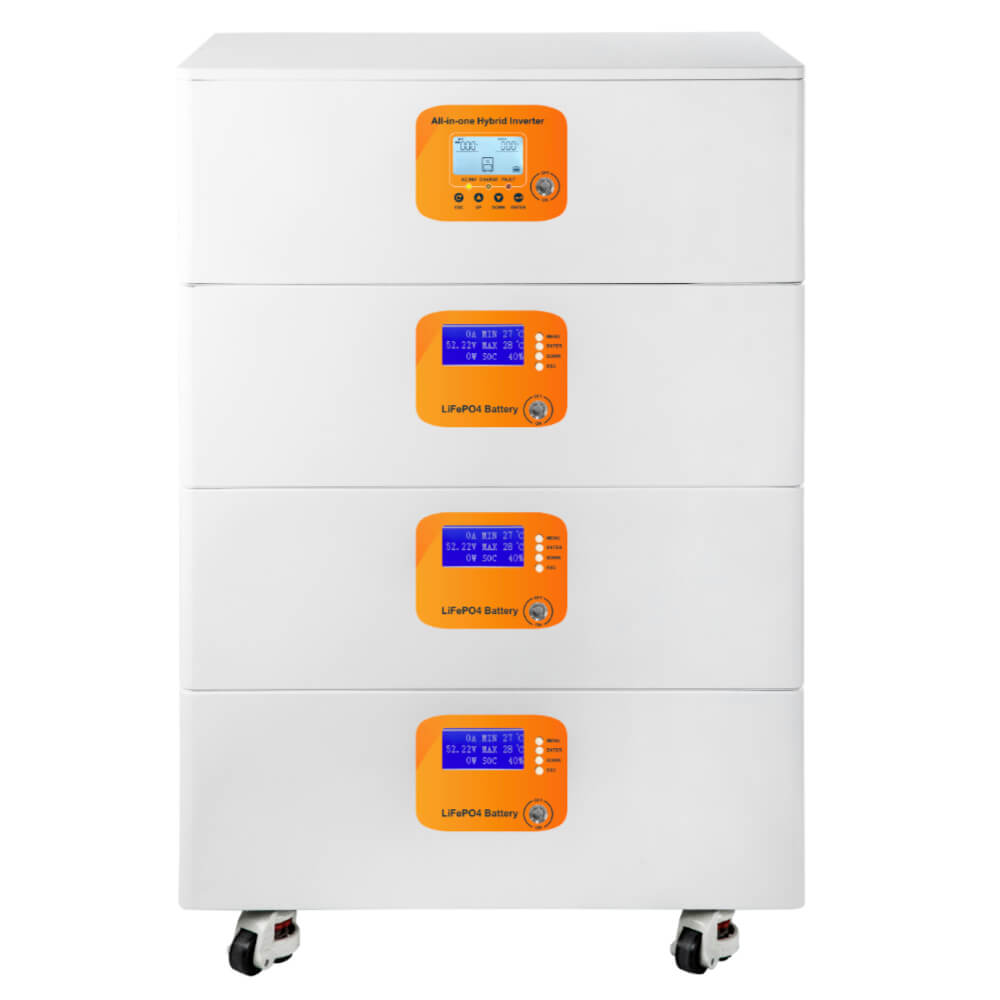

45kWh Stacked All-in-One Hybrid Energy Storage System | 48V 11kW Inverter + Triple LiFePO4 Battery Packs with Smart BMS & LCD

Description

Scale up your energy storage with our 45kWh All-in-One Stacked Energy Storage System, a heavy-duty solution designed for high-consumption residential and commercial power needs. This system combines a powerful 48V 11kW hybrid inverter with three 15kWh LiFePO4 battery packs, offering a total of 45kWh of reliable, safe, and intelligent energy storage.

Engineered with smart BMS, LCD monitoring, and hybrid input capability (PV + AC), this modular system ensures outstanding performance whether you’re off-grid, grid-tied, or running a backup power setup. The entire system is stacked, pre-integrated, and includes a moveable base for flexible installation.

Key Features:

• 🔋 Massive 45kWh Capacity – Triple 15kWh Grade A LiFePO4 battery modules
• ⚡ 11kW Hybrid Inverter – Supports up to 230V AC output, compatible with solar and grid input
• 🧠 Smart BMS Integration – Full protection: overcharge, over-discharge, temperature, short-circuit, and more
• 📺 Built-in LCD Display – Real-time system monitoring at a glance
• 🧱 Modular & Stackable Design – Sleek, compact, space-saving vertical system
• 🔌 Plug-and-Play Ready – Includes pre-wired components and full installation kit
• 🔁 Long Service Life – >6000 charge cycles @80% DOD
• 🛞 Movable Base Included – Convenient for flexible deployment and maintenance
• ✅ 5-Year Battery Warranty & 2-Year Inverter Warranty

System Configuration:

• Inverter: 48V 11kW Hybrid
  • AC Output: 210V–230V, 50Hz/60Hz
• Battery: 51.2V 300Ah × 3 = 45kWh total
• Material: Heavy-duty metal casing
• Structure: 1 inverter + 3 battery modules + 1 movable base

Packaging Information:

• Inverter Package Size: 760 × 460 × 205 mm
• Battery Package 1 (UN Wooden): 820 × 520 × 330 mm
• Battery Package 2 (UN Wooden): 820 × 520 × 330 mm
• Battery Package 3 (UN Wooden): 820 × 520 × 400 mm
• Total Gross Weight: 431.15 kg

Included Accessories:

• 1× Positive Red Cable
• 1× Negative Black Cable
• 1× RJ45 Communication Cable
• 1× Spanner
• 1× Screwdriver
• 1× Instruction Manual

Perfect for large villas, workshops, farms, telecom stations, and energy-intensive facilities, this 45kWh all-in-one hybrid storage system provides safe, stable, and sustainable energy—whenever and wherever you need it.
