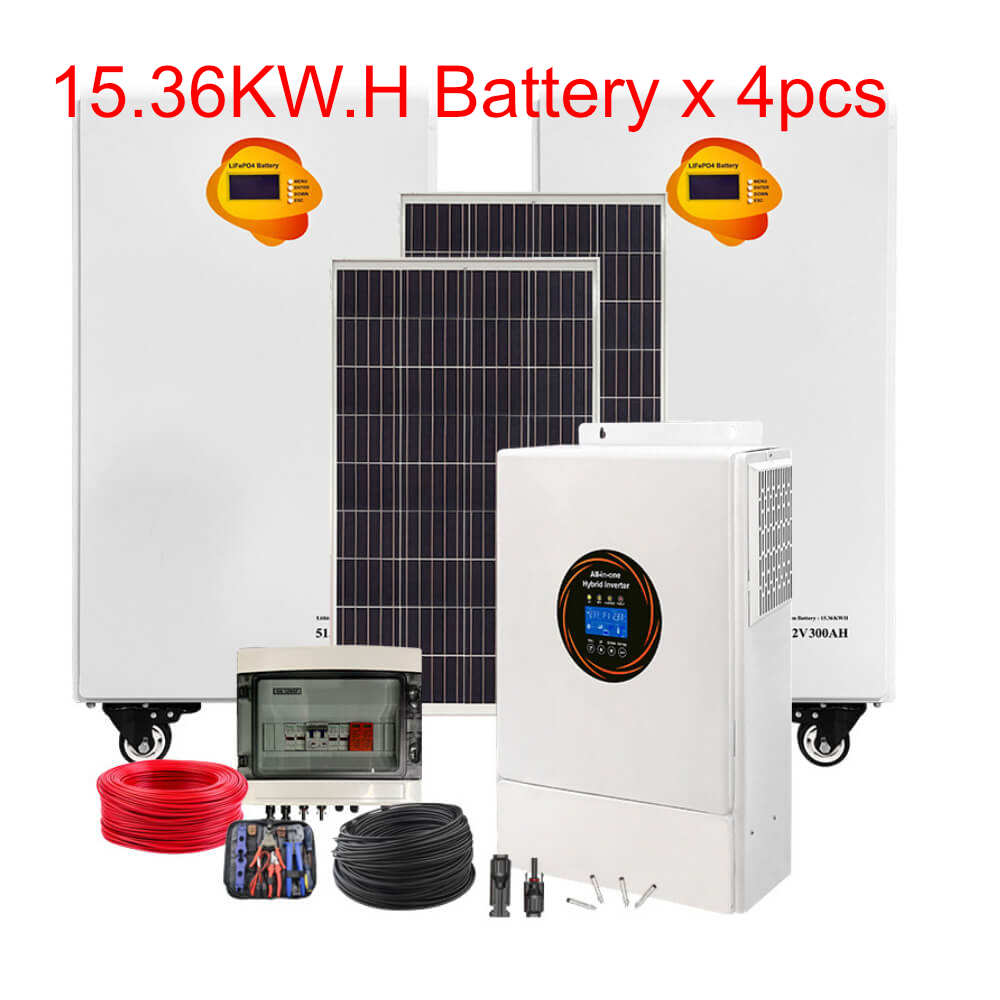

59.52kW Off-Grid Solar Energy System | 6×11kW Hybrid Inverters + 4×15.36kWh LiFePO4 Batteries + 96×620W Mono PERC Panels

Description

Empower your off-grid operations with our 59.52kW Off-Grid Solar Energy System, a high-performance, large-capacity solution built for commercial, agricultural, and industrial-scale power needs. Featuring:

• 96 × 620W Mono PERC Class A+ solar panels (Total: 59.52kW)
• 6 × 11kW MPPT hybrid inverters (Total: 66kW inverter capacity)
• 4 × 15.36kWh LiFePO4 wall-mounted batteries (Total storage: 61.44kWh)
• 4 PV combiner boxes, 100 MC4 connectors, 1,200 meters of PV cable, and aluminum mounting structure

This all-in-one solution supports solar + AC hybrid input, features smart BMS with LCD display, and is pre-equipped for safe, stable, and scalable energy delivery — completely off-grid.

⚙️System Components & Specifications

☀️ Solar Panels (×96)

• Type: Mono PERC, Class A+
• Power: 620W per panel
• Total Output: 59.52kW
• Voltage: 40.8V
• Size: 2382 × 1134 × 30 mm
• Weight: 33 kg each

⚡ Hybrid Inverters (×6)

• Power per Unit: 11kW (Total: 66kW)
• PV Input Voltage: 60–500V
• Max MPPT Current: 160A
• AC Input: 220–240V
• Max AC Output Current: 120A
• Design: Inverter + MPPT all-in-one
• Mode: Off-grid with AC backup/hybrid compatibility

🔋 LiFePO4 Batteries (×4)

• Each Battery: 51.2V 300Ah = 15.36kWh
• Total Capacity: 61.44kWh
• Mounting: Wall-mounted
• Features:
  • Smart BMS with multi-layer protection
  • LCD display for voltage, SOC, and status
  • Communication interfaces available
• Included Accessories (per unit):
  • 1× Positive red wire
  • 1× Negative black wire
  • 1× Communication line
  • 1× Instruction Manual

🧰 PV Combiner Boxes (×4)

• Enclosure: IP65 rated waterproof
• Equipped With:
  • 2P 63A DC Circuit Breaker
  • DC SPD (20–40kA, DC500V)
  • DC Fuse (32A, DC500V)

🧵 Cables & Connectors

• PV Cable: 4mm² — 600m red + 600m black
• MC4 Connectors: 100 pcs

🏗️ Mounting Structure

• Material: Industrial-grade aluminum alloy
• Installation Type: Roof/Ground adjustable (customizable layout)

✅System Highlights

• 🌞 59.52kW solar generation for large-scale energy independence
• ⚡ 66kW inverter output via 6 modular hybrid units
• 🔋 61.44kWh LiFePO4 battery bank with intelligent BMS
• 🛡️ 4 combiner boxes with SPD, fuses, and circuit breakers for full protection
• 🔌 Hybrid input support: solar + AC grid/backup
• 📊 LCD display & communication port for system status and data monitoring
• 🏗️ All-in-one package with installation-ready accessories

🛡️Warranty

• Battery: 5 Years
• Inverter: 2 Years
• Solar Panels: 10–12 Years Power Output Warranty
