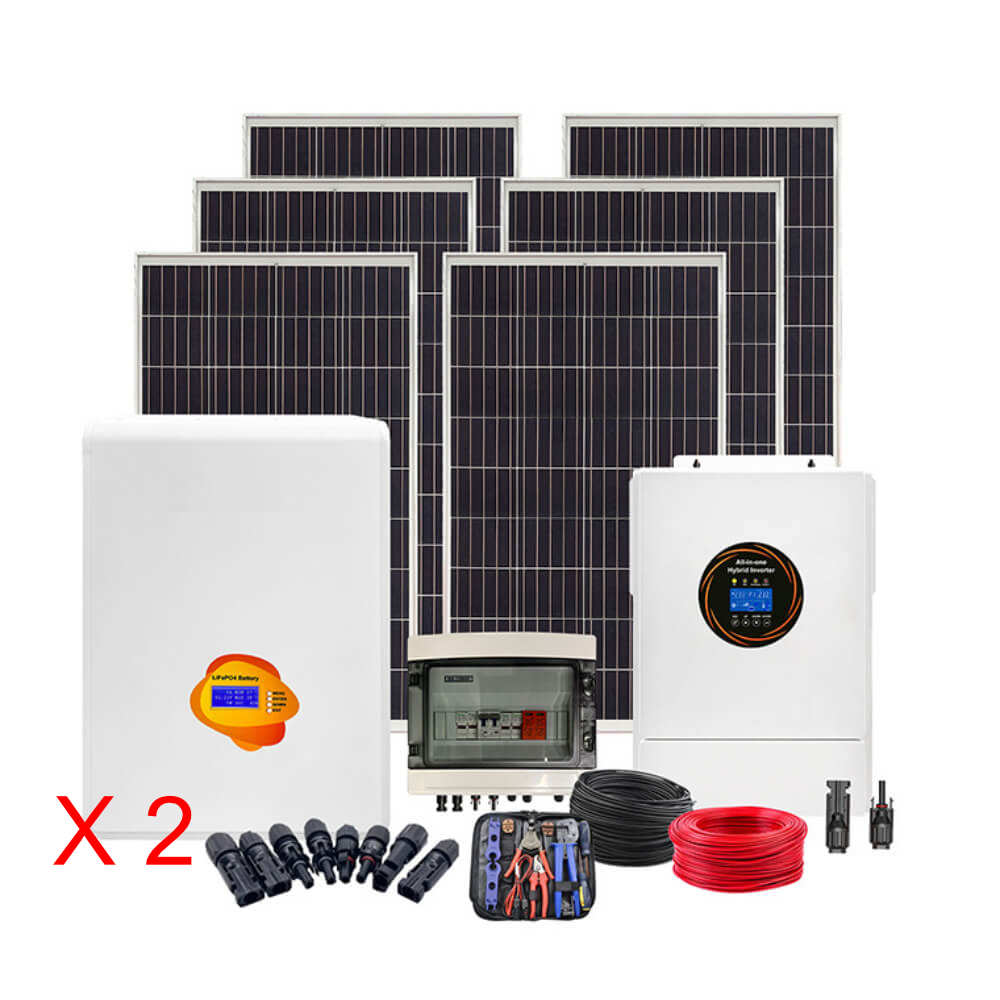

Complete Off-Grid Solar Power System | 11kW Hybrid Inverter + 10.24kWh LiFePO4 Battery + 16×620W Mono PERC Panels

Description

Deliver high-performance off-grid energy to your home, farm, or remote facility with this complete 11kW Off-Grid Solar Power System. Built for stability, flexibility, and long-term power independence, this system includes:

• 16× Class A+ Mono PERC solar panels (total: 9.92kW)
• A high-performance 11kW MPPT hybrid inverter
• A smart 10.24kWh wall-mounted LiFePO4 battery
• All essential wiring, MC4 connectors, mounting structures, and PV protection components

Whether you’re looking for total off-grid living, reliable backup power, or a remote energy solution, this system is engineered for safety, expandability, and real-time performance visibility.

⚙️System Components & Specifications

☀️ Solar Panels (×16)

• Type: Mono PERC, Class A+
• Rated Output: 620W per panel (Total: 9.92kW)
• Voltage: 40.8V
• Dimensions: 2382 × 1134 × 30 mm
• Weight: 33 kg per panel

⚡ Hybrid MPPT Inverter (×1)

• Rated Output: 11kW
• Battery Voltage: 48V
• PV Input Voltage Range: 60V–500V
• Max MPPT Current: 160A
• Max AC Current: 120A
• AC Input Voltage: 220–240V
• Type: Inverter + MPPT all-in-one

🔋 LiFePO4 Battery (×1)

• Capacity: 51.2V 200Ah = 10.24kWh
• Installation: Wall-mounted
• Features:
  • Smart BMS (Battery Management System)
  • LCD display for real-time status
  • Communication interfaces available
• Included Accessories:
  • 1× Red positive cable
  • 1× Black negative cable
  • 1× Communication cable
  • 1× User manual

📦 PV Combiner Box (×1)

• Enclosure: IP65 Waterproof Plastic
• Includes:
  • DC Circuit Breaker (2P 63A)
  • DC SPD (2P, 20–40kA, DC500V)
  • DC Fuse (32A, DC500V)

🧰 Cables & Connectors

• PV Cables: 4mm² – 100m red + 100m black
• MC4 Connectors: 16 pcs

🏗️ Mounting Structure

• Material: Aluminum alloy
• Note: Layout customizable depending on project requirements

✅System Highlights

• ☀️ 9.92kW High-Efficiency Mono PERC Solar Input
• ⚡ 11kW Pure Sine Wave Inverter with AC & PV Hybrid Input
• 🔋 10.24kWh LiFePO4 Battery with Smart BMS
• 🛡️ Comprehensive Electrical Protection (SPDs, Breakers, Fuses)
• 🔌 Plug-and-Play Design — Quick deployment, simplified wiring
• 📊 Real-time Monitoring via LCD & Communication Interface
• 💧 IP65 Weatherproof Protection for outdoor use
• 🏠 Ideal for homes, cabins, farms, telecoms, and backup power systems

🛡️Warranty

• Battery: 5 Years
• Inverter: 2 Years
• Solar Panels: 10–12 Years (Performance Warranty)
