Complete Off-Grid Solar Power System | 5.5kW Inverter + 5.12kWh LiFePO4 Battery + 8× 620W Mono PERC Solar Panels

Description

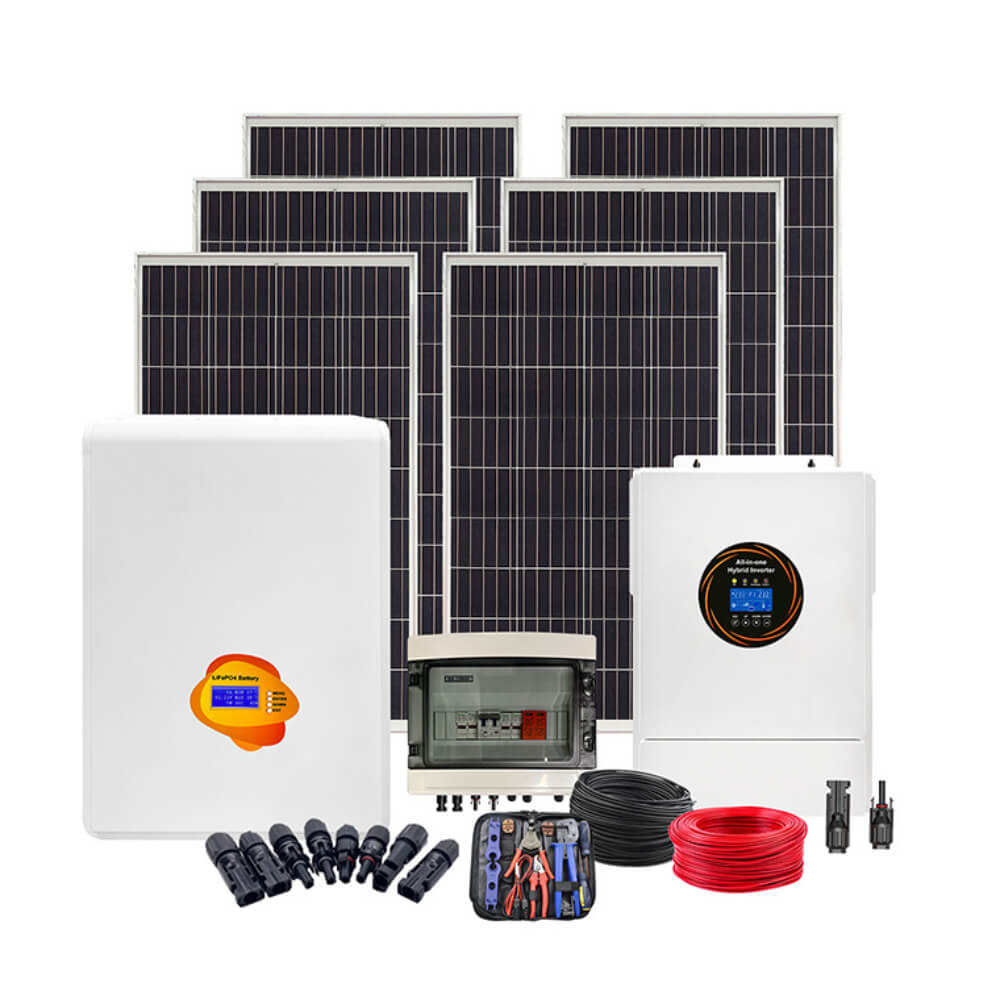

Power your home, cabin, or remote facility with our All-in-One Off-Grid Solar Energy System, designed for efficient, stable, and long-lasting energy independence. This fully integrated system includes high-efficiency Mono PERC solar panels, a 5.5kW MPPT inverter, a 5.12kWh LiFePO4 wall-mounted battery, and all essential accessories for installation.

Ideal for areas without grid access or for users seeking full energy autonomy, this system supports solar-only or solar + AC input, with smart BMS protection, LCD monitoring, and reliable surge & circuit protection via an included IP65 PV combiner box.

Key Components:

🔆 Solar Panels (×8)

• Type: Mono PERC, Class A+
• Power Output: 620W per panel (Total: 4.96kW)
• Voltage: 40.8V
• Size: 2382 × 1134 × 30 mm
• Weight: 33 kg each

⚡ MPPT Inverter (×1)

• Rated Power: 5.5kW
• System Voltage: 48V
• AC Input: 220–240V
• PV Input Voltage: 120–500V
• Max PV Current: 100A
• Max AC Current: 80A
• Integration: MPPT + Inverter combined in one unit

🔋 LiFePO4 Battery (×1)

• Capacity: 51.2V 100Ah = 5.12kWh
• Installation: Wall-mounted
• Features: Smart BMS, LCD display, communication interface available
• Included Accessories:
  • 1× Positive red cable
  • 1× Negative black cable
  • 1× Communication cable
  • 1× Instruction manual

🧰 PV Combiner Box (×1)

• Material: IP65-rated plastic enclosure
• Protection Components:
  • DC Circuit Breaker (2P 63A)
  • DC SPD (2P, 20–40kA, DC500V)
  • DC Fuse (32A, DC500V)

🧵 Cables & Connectors

• PV Cable: 4mm², 50m red + 50m black
• MC4 Connectors: 8 pcs

⚙️ Mounting Structure

• Material: Aluminum Alloy
• Application: Adjustable for rooftop or ground mount (customization required)

✅Why Choose This System?

• High-output Mono PERC Class A+ solar panels
• Intelligent MPPT inverter with AC backup option
• Durable LiFePO4 battery with 5,000+ cycle lifespan
• Full set of protection and monitoring components included
• Plug-and-play, easy to install off-grid solution
• Ideal for remote homes, farms, telecom towers, boats, backup power

🛡️Warranty

• Battery: 5 Years
• Inverter: 2 Years
• Solar Panels: 10–12 Years Performance Warranty (Optional Tiered Warranty)
